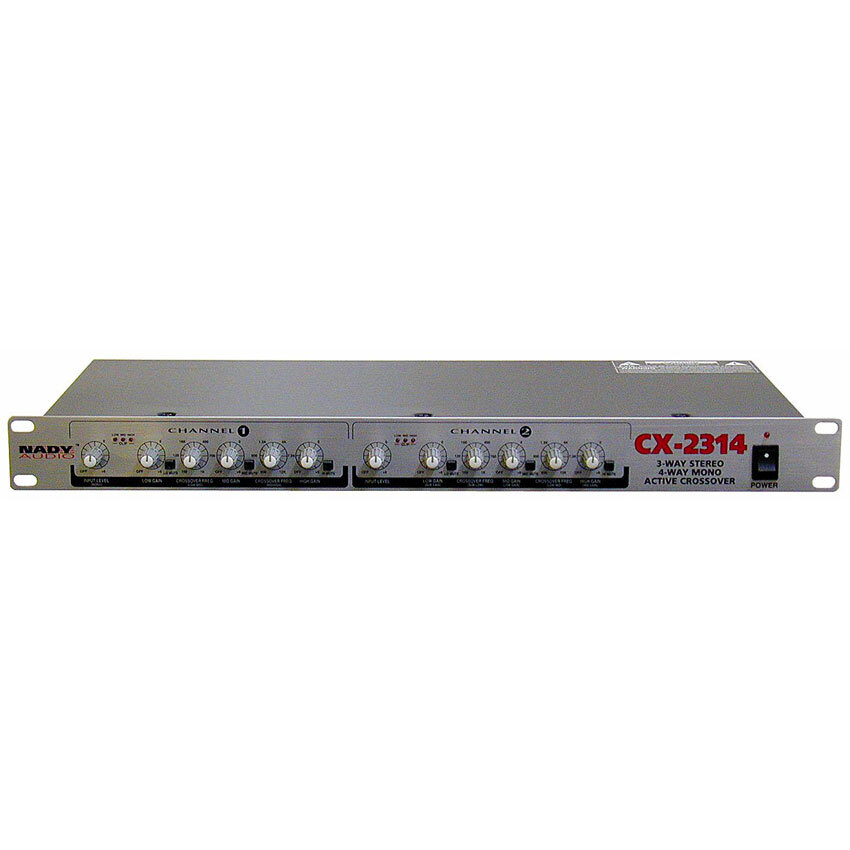

Nady CX-2314 Active, 3-Way Stereo, 4-Way Mono Crossover

The Nady CX-2314 Active, 3-way stereo, 4-way mono crossover. Nady offers a variety of options for virtually all live sound reinforcement amplifier configurations, the CX Series makes state-of-the-art crossover technology affordable.

FEATURES:

• Single rack space (1U) metal housing
• Top audio performance with high slew rate circuitry and over 115dB dynamic range for clear transparent sound
• Designed for the most precise accurate control
• Phase inversion switches
• Low-cut subsonic filters for low frequency driver protection Servo-balanced XLR inputs
• Switchable constant directivity horn equalization circuit for use with horns requiring a high frequency boost
• State-variable Linkwitz Riley 24dB/ octave filters
• Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)

SPECIFICATIONS:

• Frequency Response
  Low Frequency Output: 10HZ +/- 0.5dB
  High Frequency Output: 20KHz +/-1.0dB
• Total Harmonic Distortion
  RL: >2k?
  Low Frequency Output: < 0.01% THD
  High Frequency Output: <0.02% THD
• Maximum Output Level
  RL: >2k? +21 dBu (6.2 volts) @ < .05% THD 20Hz - 20kHz
• Maximum Voltage Gain: 6dB
• Constant-Directivity Correction: +3dB @ 3.5kHz rising at 6 dB/octave to 22.5kHz
• Power Supply: 115V(60Hz) / 230V(50Hz) selectable
• Fuse: 0.5A/250V, 5x20 mm
• Frequency Range
  Low Mid (X1): 100Hz to 920Hz
  Mid-High (X10): 800Hz to 9.2kHz
• Hum and Noise (20Hz- 20kHz): Av=0 dB. fc=230.2.3kHz
• Low Frequency Section
  Output @0dB: <-98dBu
• Mid Frequency Section
  Output @ 0dB: <-95dBu
• High Frequency Section
  Output @ 0dB: <-93dBu
• Signal-To-Noise Ratio: 114dB
• Controls
  Input Level: Continuously variable
  Output Level: Low, High cont. Variable
  Phase: Rear panel switch
  Mute: Low. Mid, High front panel switches
  CDBoost: Rear panel switch
  Channel link: Rear panel switch
• Dimensions: 19" x 7.7" x 1.7" (483 x 194.5 x 44 mm)
• Weight: 5.5 lbs (2.5 Kg)
