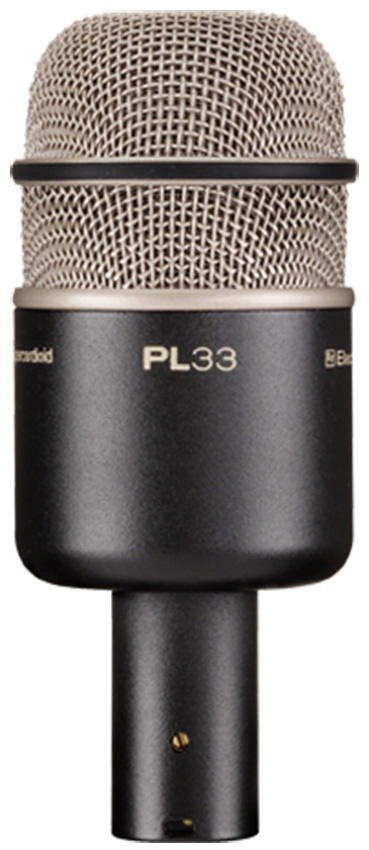

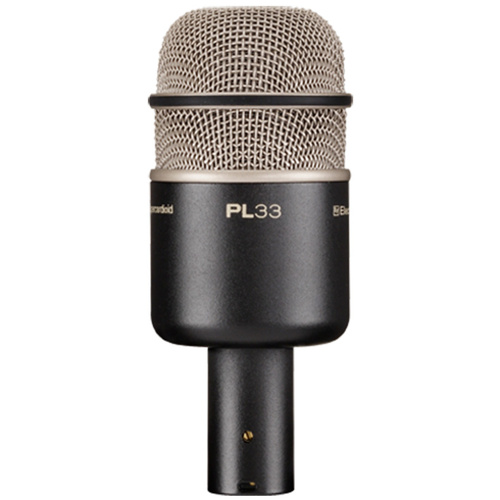

Electro-Voice PL33 Dynamic Supercardioid Bass Drum & Instrument Microphone

The Electro-Voice PL33 is a professional-grade supercardioid dynamic microphone designed to deliver the power, punctuation and snap of kick drums in any size sound reinforcement system or recording studio.

With its tight low end, kick drum-modified mid-range and high frequency response, the PL33 delivers all of the percussive impact detail professional drummers and sound system engineers require. The PL33's tight supercardioid polar pattern is designed to minimize off-axis information entering the capsule, and allows for a very isolated instrument sound and higher gain before feedback. Although designed to be a kick drum microphone, the PL33 also functions quite well as a low tom and bass guitar speaker cabinet microphone.

Specifications:

• Weight Net: 12.84oz (364g)
• Audio Frequency Response: 20 Hz - 10,000 Hz
• Case Material: Die cast zinc
• Connector Type: 3-pin XLR
• Element: Dynamic
• Family: PL Series
• Finish: Textured Satin Black
• Impedance, Low-Z balanced: 150?
• Mic Type: Instrument
• Open Circuit Voltage: 0.63mV/Pascal
• Polar Pattern: Supercardioid
• Power Requirement: Passive
• Accessories Included: Stand adapter with Euro-thread insert & Soft zippered gig bag

Application Notes
As with most directional microphones, the low frequency response of the PL33 microphone varies with the distance from the sound source. Known as "proximity effect" the bass response of the microphone increases as the working distance to the microphone is reduced. This "bass boost" is only audible when working at distances closer than 6 inches. Therefore, working close to the microphone will produce a more robust sound. Using this microphone at distances greater than 6 inches provides minimal coloration from proximity effect.

Close-up positioning of the microphone will also reduce the potential for feedback from the sound reinforcement system. Then the bass-boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the system's sensitivity to feedback caused by the sound entering the microphone from the loudspeakers.
