Bartolini 5J Johnny Smith Type Dual Coil Jazz Guitar Humbucking Pickup

High fidelity, clarity, definition and articulation for your Jazz guitar.

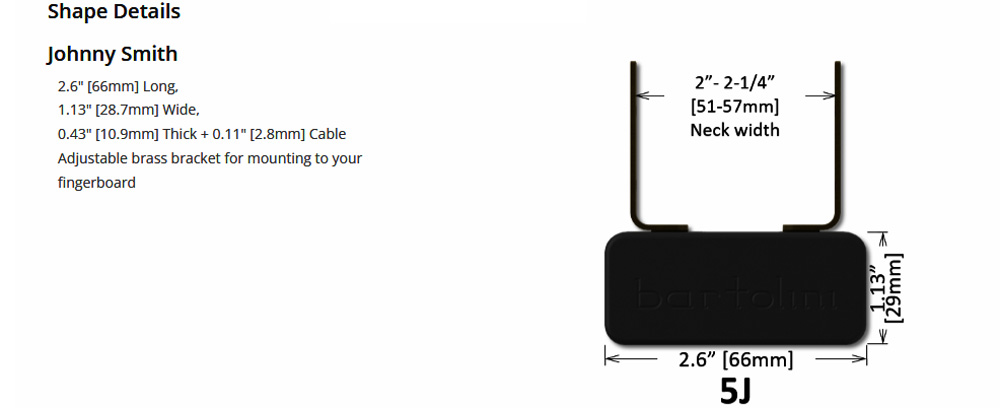

Johnny Smith worked closely with Gibson to design full-bodied arch-top guitars, and we pay homage to that classic Jazz guitar sound with our own jazz pickup. The dual coil Johnny Smith (JS) humbucker gets a smooth, clear distinctive tone available with or without adjustable brackets for mounting to the end of your fretboard. The pickup body is less than 7/16” thick.



 SET INCLUDES:

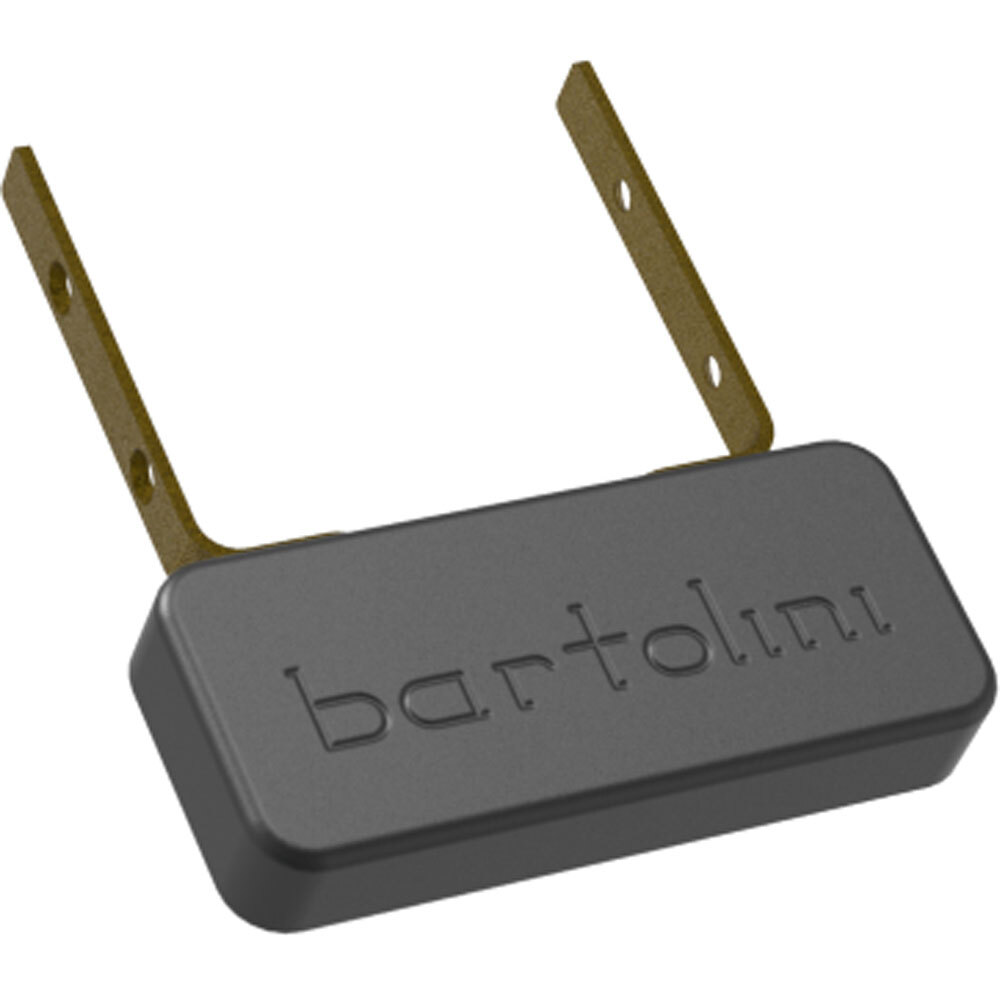

Bartolini 5J - Humbucker with Bracket

Technical Details:

Type: Humbucker To Suit: Johnny Smith Jazz Guitar Coil: Dual Coil DC Resistance: ~3.6K ohms each coil Resonant Frequency: ~6.1KHz Sensing Width: 1.97" [50mm] Max Coil Structure: Dual Parallel Humbucking Cable Type: Shielded Coaxial Hot Core Magnetic Circuit: Carbon steel and brass powered by ceramic (ferrite) magnets projected for wide but focused field. Neck coil South and Bridge coil North





NEED A DIFFERENT CONFIGURATION?
To view all Bartolini Bass Pickups CLICK HERE. To check availability and RRP, quote the model number you are interested in to the friendly staff at Pro Music Sales - Contact 1300 880 278 or sales@promusicaustralia.com
