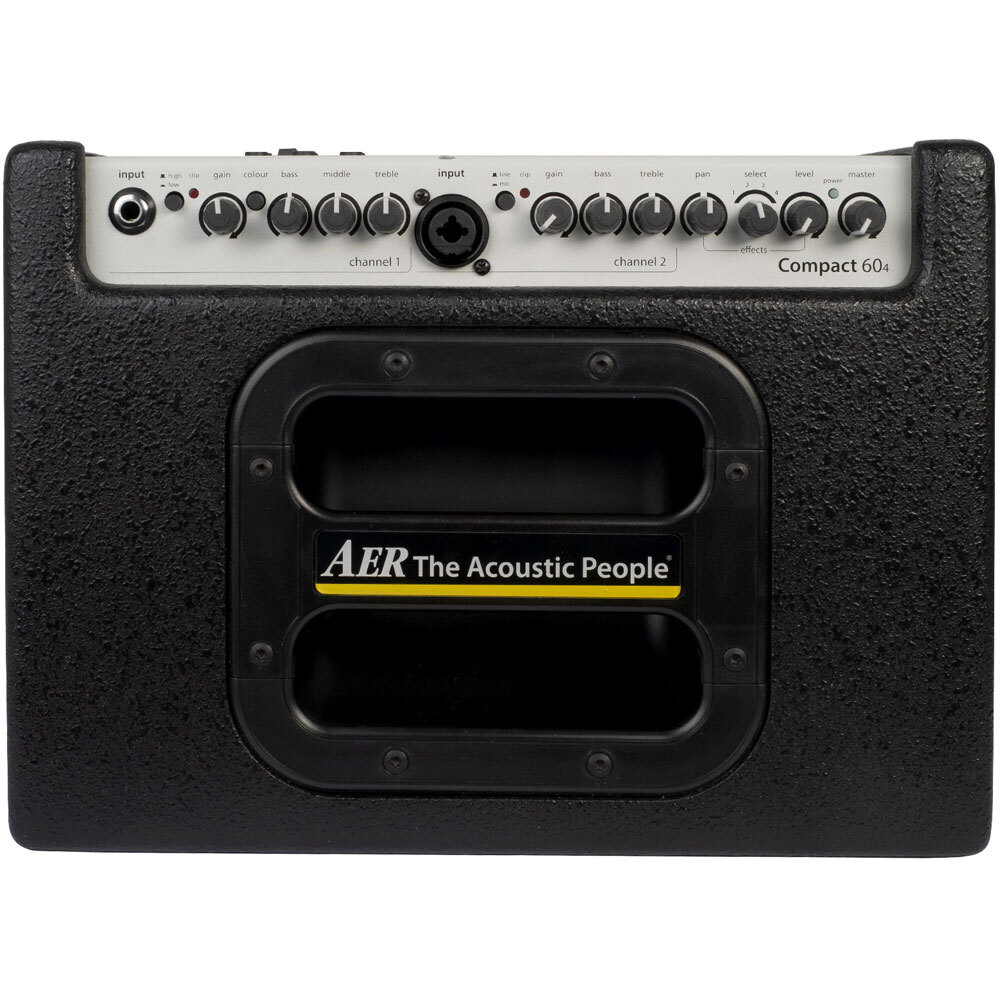

AER "Compact 60/4 Slope" Acoustic Instrument Amplifier (60 Watt)

The Compact 60 Slope is a professional, compact and powerful amplifier system. Especially developed for the enhancement of acoustic instruments it is nonetheless suitable for other instruments, even electrical ones.

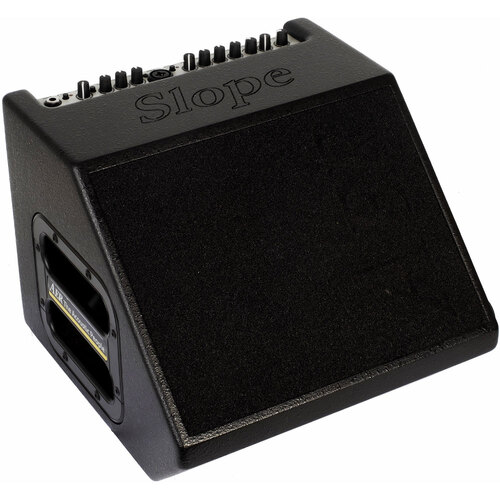

Our design concept was focused on the singer/songwriter who requires outstanding reproduction of his instrument and vocals and prefers the sound source on the floor addressing him in an angle (45degrees). The Compact Slope accomplishes this by combining well approved Compact 60 with a wedge design cabinet.

FEATURES:

• Monitor Plus Design
• Two independent channels for instrument and z. B. high quality condenser microphones.
• Channel 2 provides 48-V phantom power.
  For channel 1, 9 V phantom power can be switched on in order to supply your pickup system with the required voltage.
• A customized 8" twin cone loudspeaker and 60 watts RMS output power, sufficient to dynamically and powerfully amplify your instrument in every rehearsal room and on club stages.
• High-end DI-out to the FOH system
• 4 onboard effects: short reverb, long reverb, delay, chorus. The effect can be added to each channel via a PAN control.
• 7.2 kg light weight, transportable in all public transports and also as hand luggage on airplanes.
• Independent 3/2-band EQ

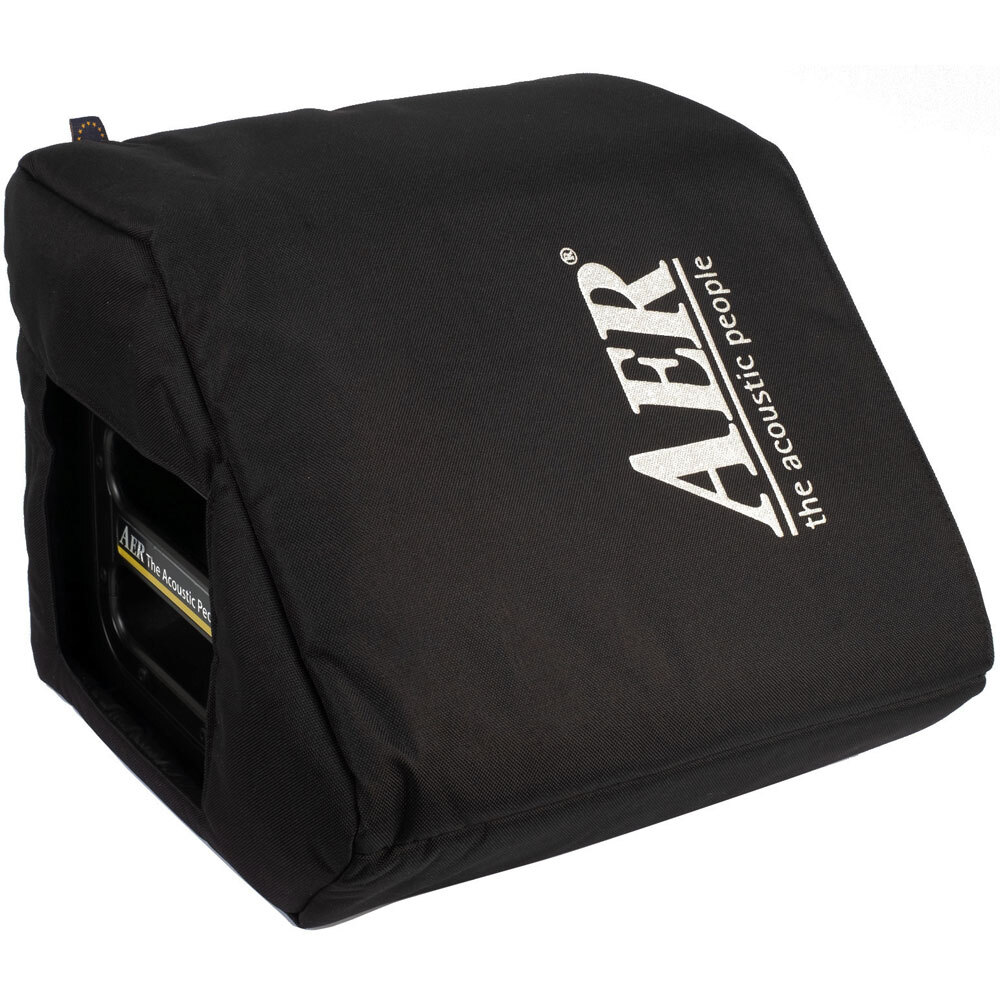

• Delivered with a high quality padded cover
• Recommended for: Acoustic guitar, voice, wind instruments, mandolins, oud, traditional Chinese instruments, mouth harp, but also cellos and electrical instruments

SPECIFICATIONS:

• Channel 1
  6.3 mm (1/4") input jack socket as high impedance line input stage with pad (high/low attenuation), 9V phantom power and gain control
• Channel 2
  Combined XLR/6.3 mm (1/4") input jack socket as high quality line or balanced microphone input stage 48V phanton power, gain control
• Equalizer
  Three band tone controls for channel 1 and two band tone controls for channel 2
• Colour
  'mid-cut-treble-boost'-filter
• Effects
  Digital effect processor with 4 presets: 2 x reverb, delay, chorus
• Power amp
  60W / 4 ohms, dynamic control
• Speaker system
  8" (200 mm) twin cone speaker
• Features
  Headphones, line out, DI-out, external effect loop via send and return, footswitch (internal/external effect on/off )
• Wedge Angle
  45 degree
• Dimensions
  260mm x 330mm x 137/235mm (10.19" x 13.03" x 5.39"/12.84"), H x W x D
• Weight
  7.2 kg (15.87 lbs)
